How to use IMMARKUS

Chapters

1. 1

   Intro & workspace

   What IMMARKUS is, and opening the working folder where data is saved

   Narration script

   • 0:10IMMARKUS is open-source software for adding semantic annotations to IIIF images, for researchers

     IMMARKUS is open-source software for adding semantic annotations to IIIF images, built for researchers.

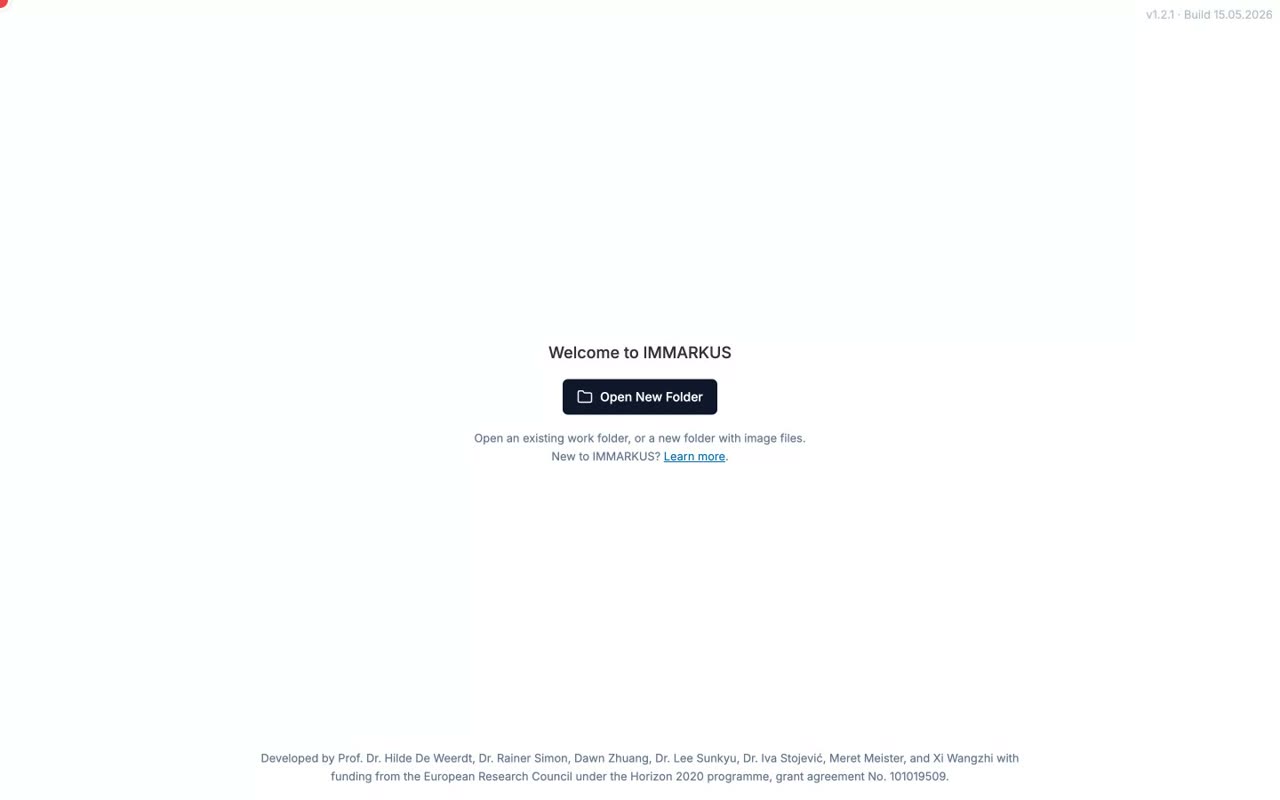

   • 0:17First, we open a working folder

     First, we open a working folder.

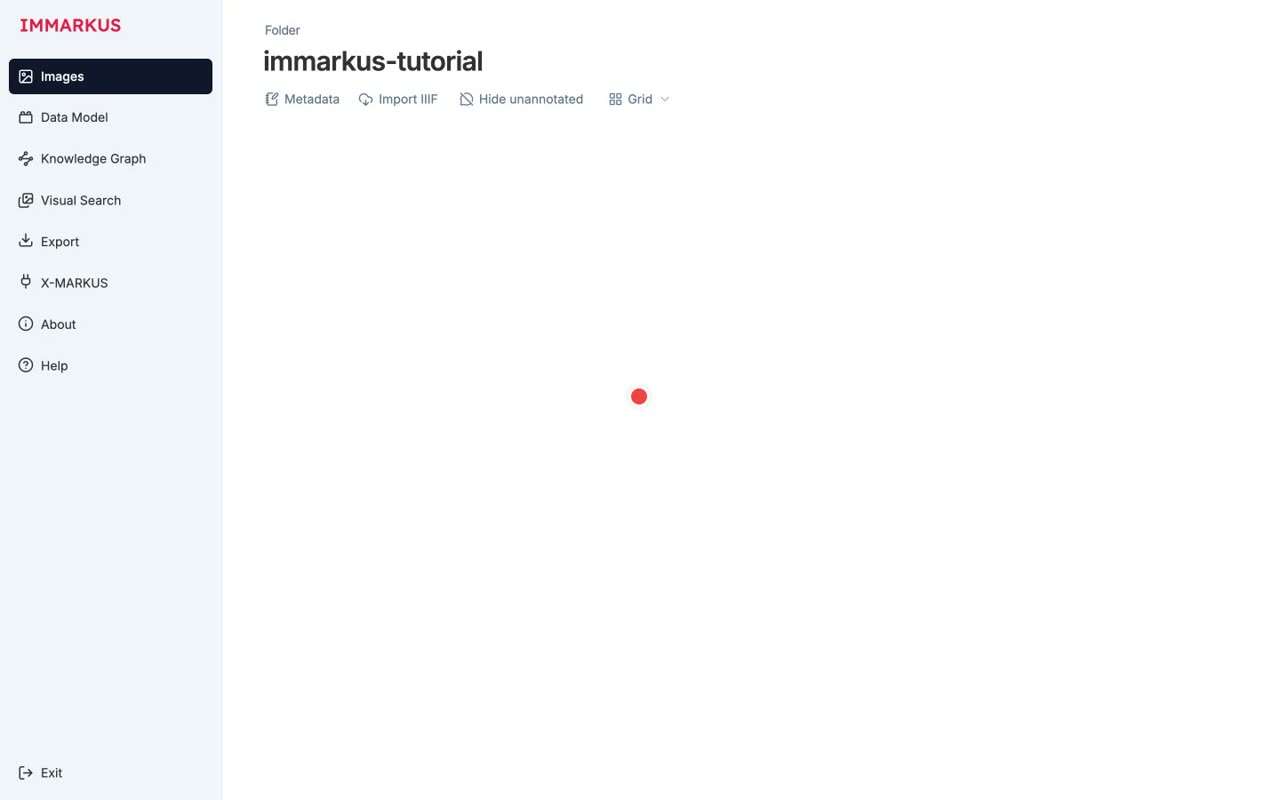

   • 0:24Workspace launched — your data is saved in this folder

     The workspace launches, and your data is saved in this folder.


2. 2

   Designing the data model

   Schema-first design, Entity Classes / Relationships / metadata, and nine property types

   Narration script

   • 0:07IMMARKUS follows a "design the schema first, then annotate" approach

     IMMARKUS follows a design-the-schema-first, then-annotate approach.

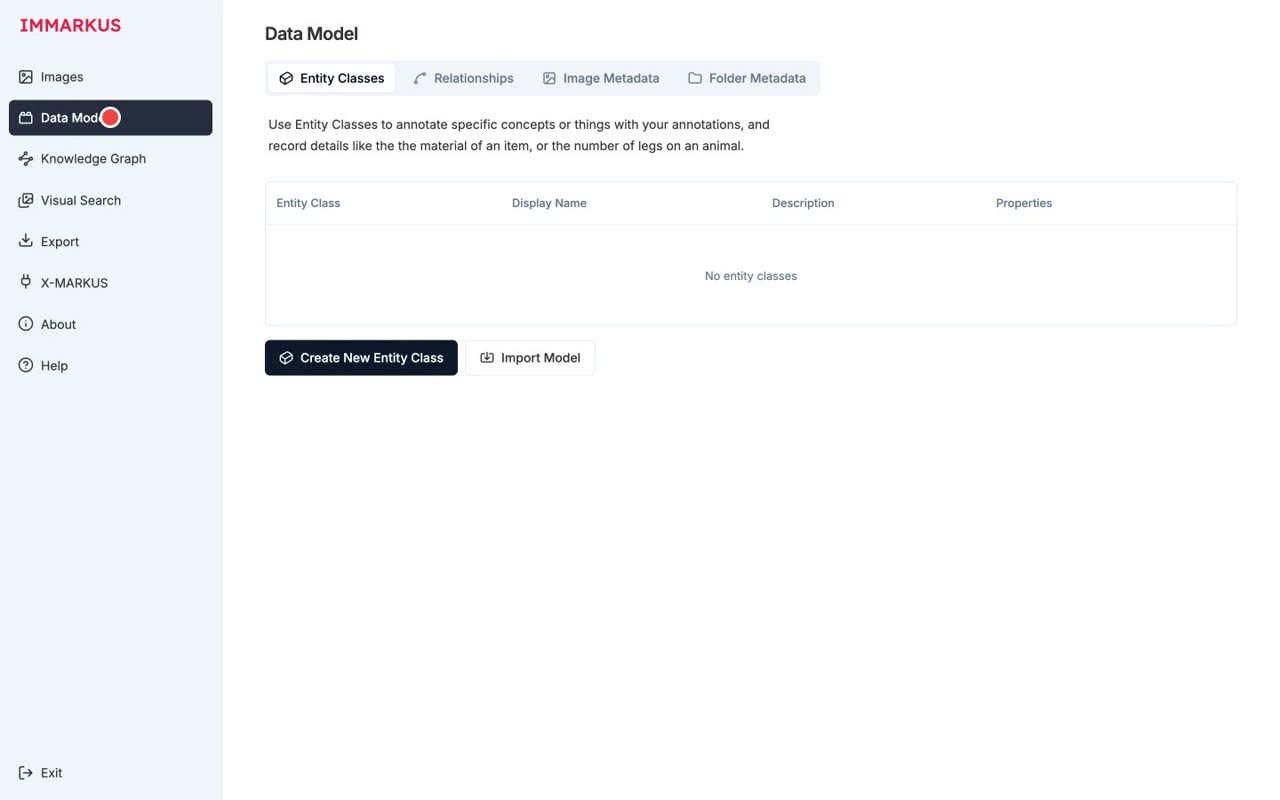

   • 0:10The Data Model has four sub-tabs

     The Data Model is made up of four sub-tabs.


   • 0:14Entity Classes: a class hierarchy for people, yokai, and more

     Entity Classes hold a class hierarchy, for things like people and yokai.

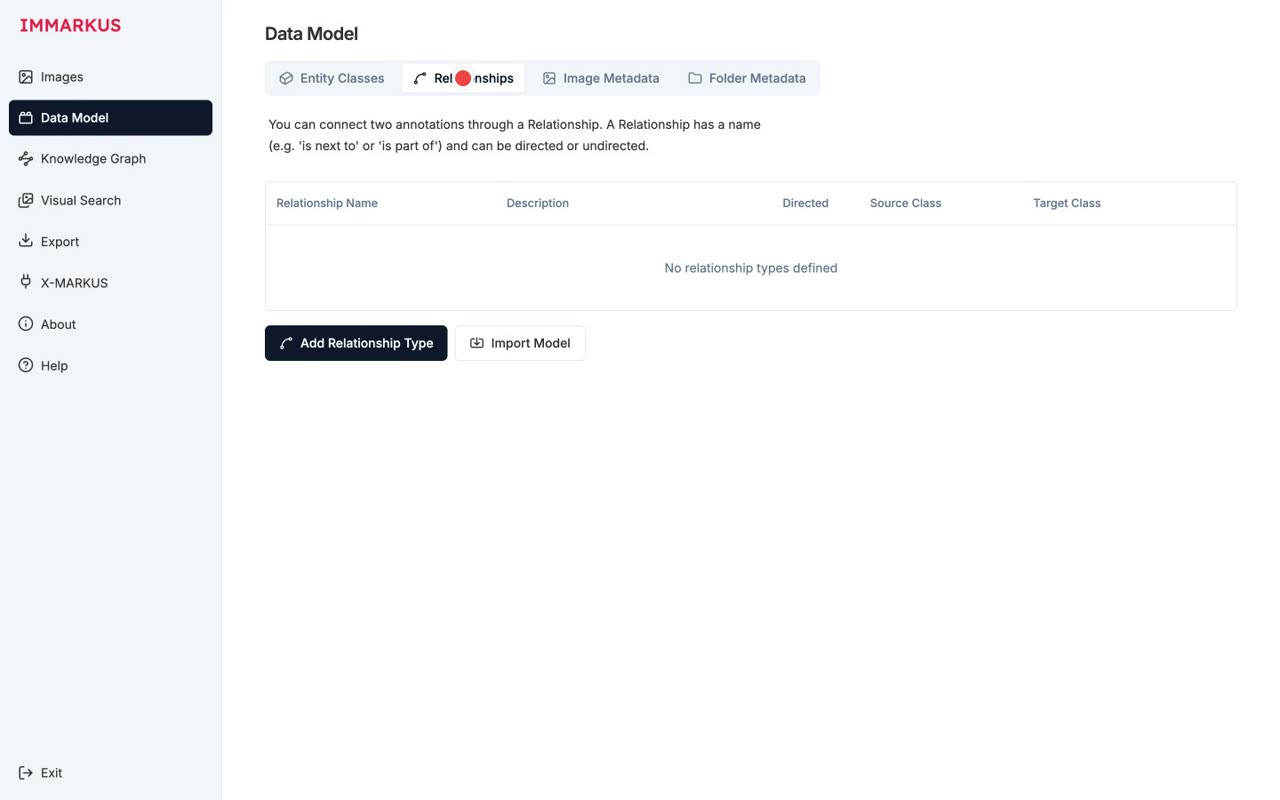

   • 0:17Relationships: relationship types (directed or undirected)

     Relationships define relationship types, which can be directed or undirected.


   • 0:21Image Metadata: metadata per image

     Image Metadata is metadata for each individual image.

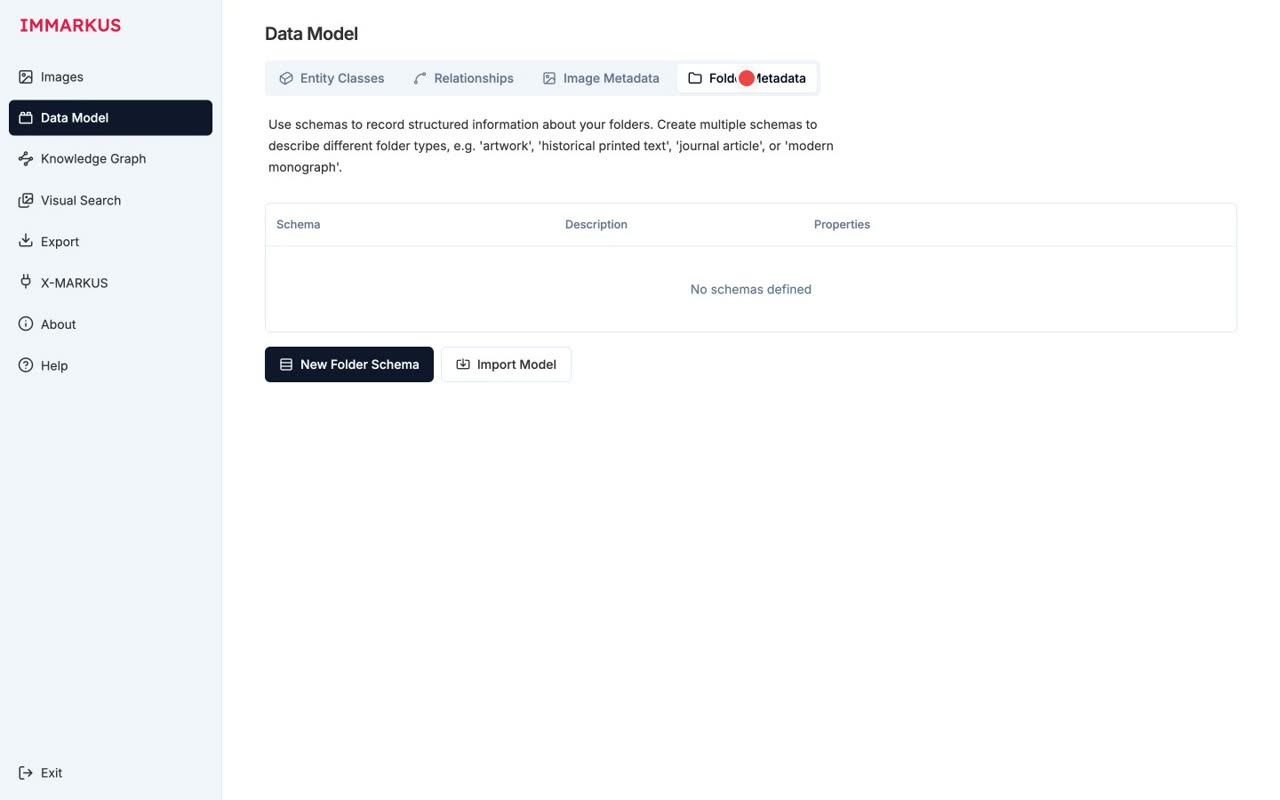

   • 0:25Folder Metadata: metadata per collection (folder)

     Folder Metadata is metadata for a collection, that is, a folder.

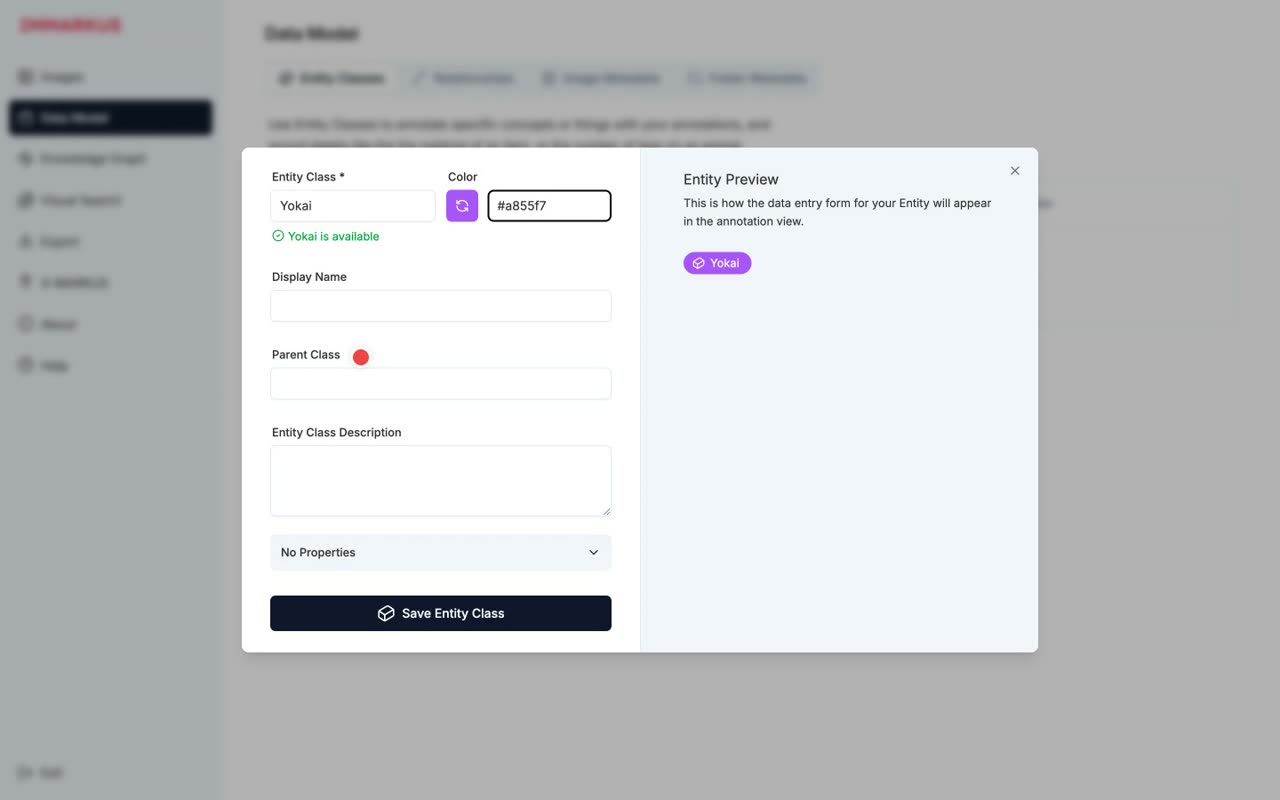

   • 0:27Let's create just one: a purple Yokai class

     Let's create just one: a purple Yokai class.


   • 0:34Nine property types Text / Number / Options / Number Range / URI Geo-coordinates / Measurement / Color / External Authority

     There are nine property types: Text, Number, Options, Number Range, URI, Geo-coordinates, Measurement, Color, and External Authority.

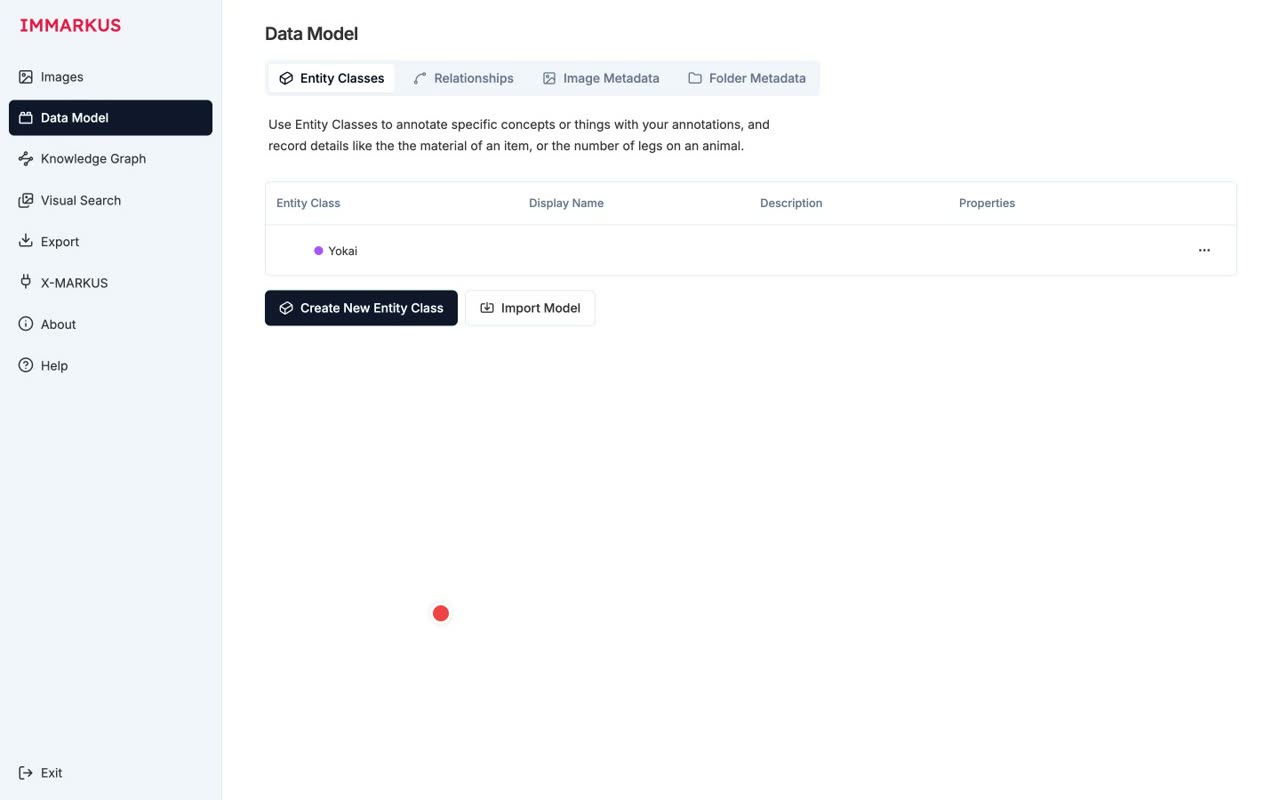

   • 0:40The Yokai class has been added ✓

     The Yokai class has been added.


3. 3

   Importing images via a IIIF manifest

   Importing a IIIF manifest instead of a local image (subject: the Night Parade of One Hundred Demons)

   Narration script

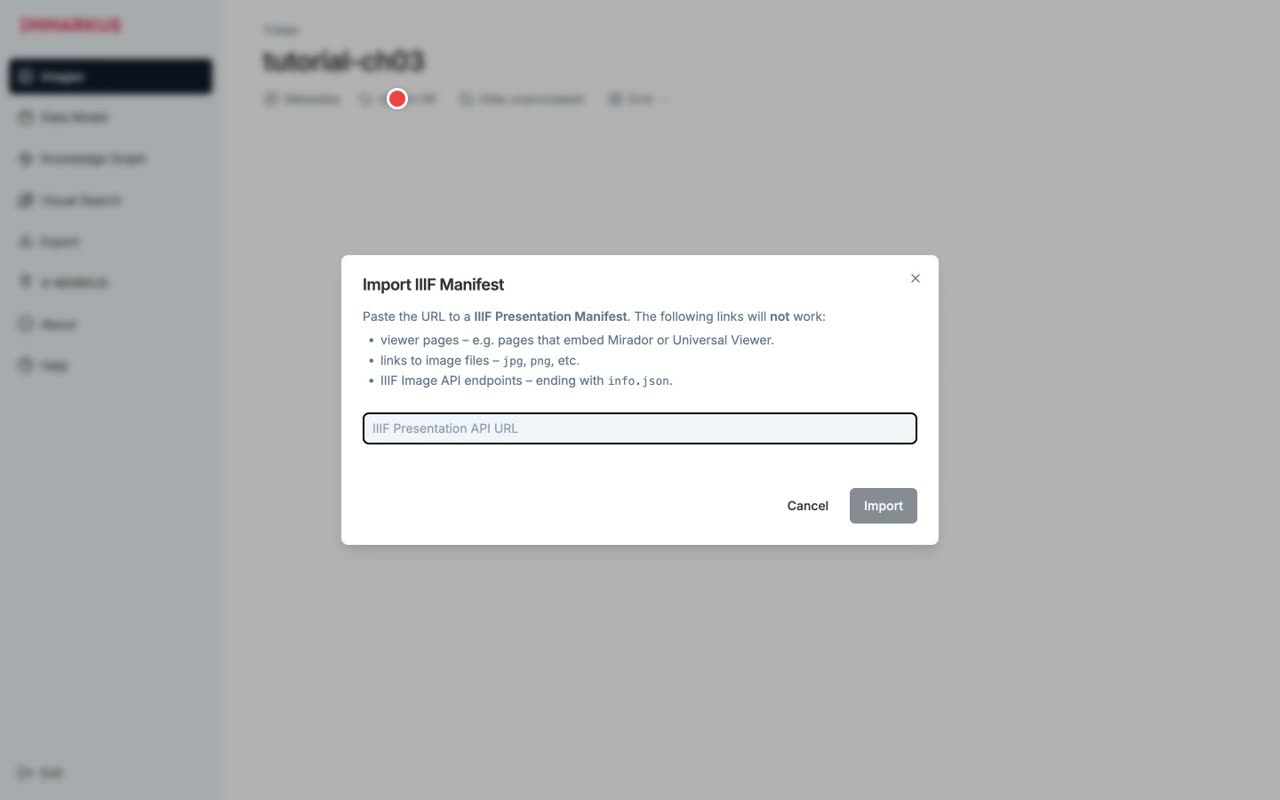

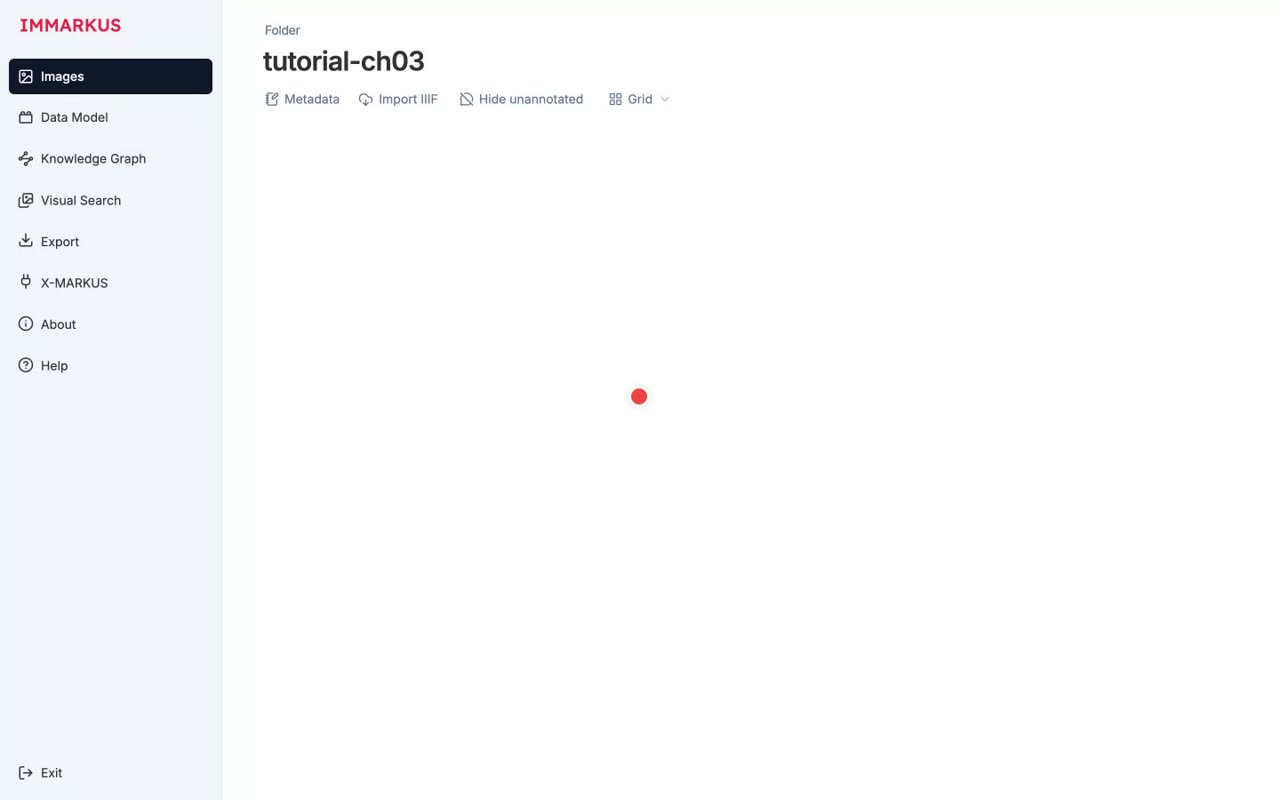

   • 0:08Instead of a local image, let's use a IIIF manifest

     Instead of a local image, let's use a IIIF manifest.


   • 0:13You can load images directly from digital archives around the world

     You can load images directly from digital archives around the world.


   • 0:19Subject: "Hyakki Yagyo Zu" from the University of Tokyo Digital Archive

     Our subject is the Night Parade of One Hundred Demons, from the University of Tokyo Digital Archive.

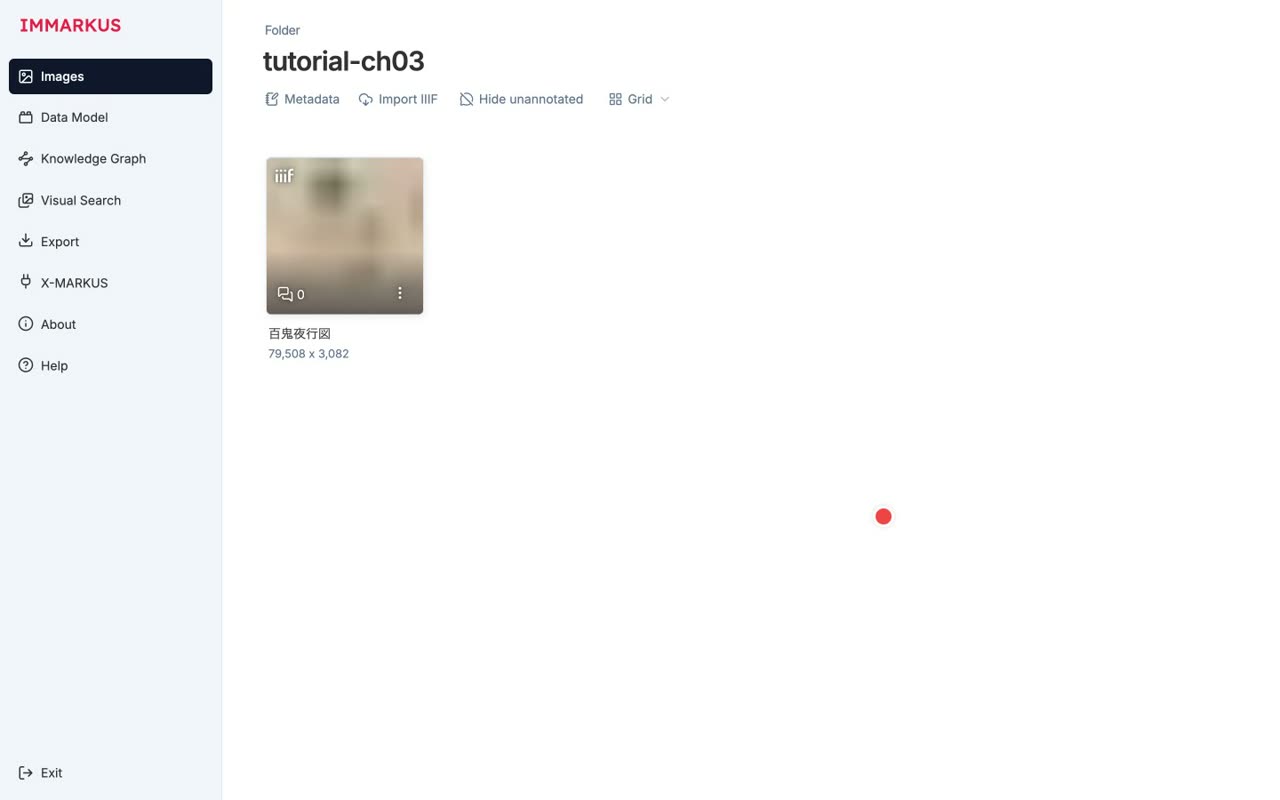

   • 0:25Import complete — a huge handscroll at 79,508 × 3,082 pixels

     Import complete. It's a huge handscroll, seventy-nine thousand by three thousand pixels.


   • 0:30With IIIF Image API tiling, even huge images stay responsive

     Thanks to IIIF Image API tiling, even huge images stay responsive.


4. 4

   Drawing annotations

   Box / Polygon / Ellipse / Path, the smart tools, and tagging

   Narration script

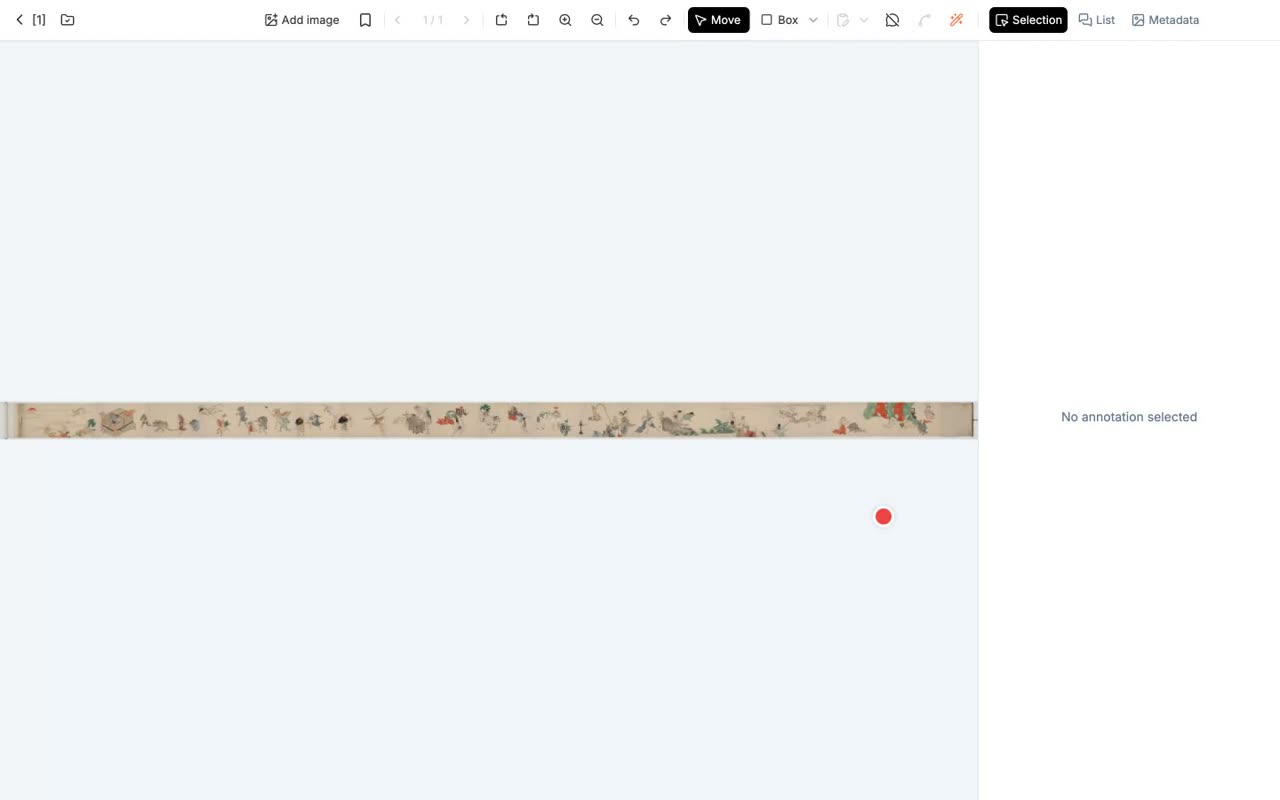

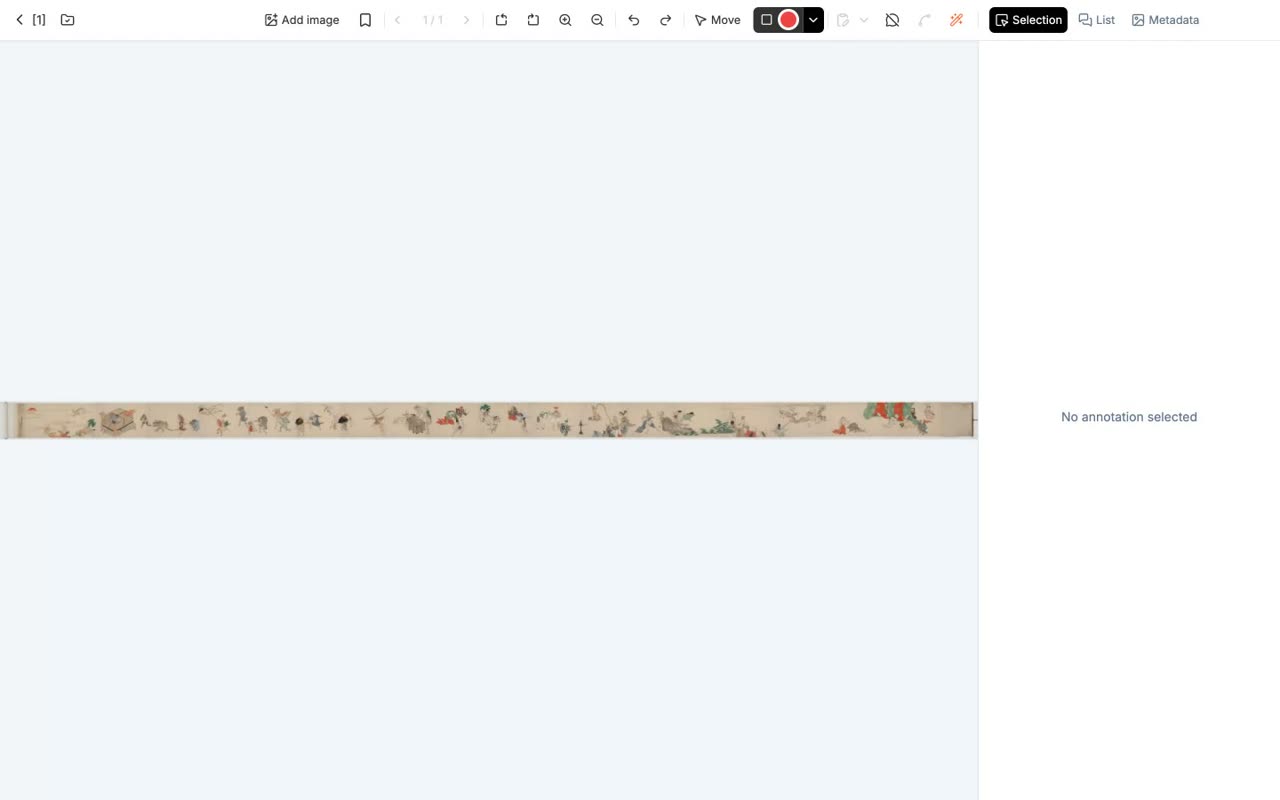

   • 0:21We start by taking in the whole scroll

     We start by taking in the whole scroll.


   • 0:22Four shapes: Box / Polygon / Ellipse / Path

     There are four shapes: Box, Polygon, Ellipse, and Path.

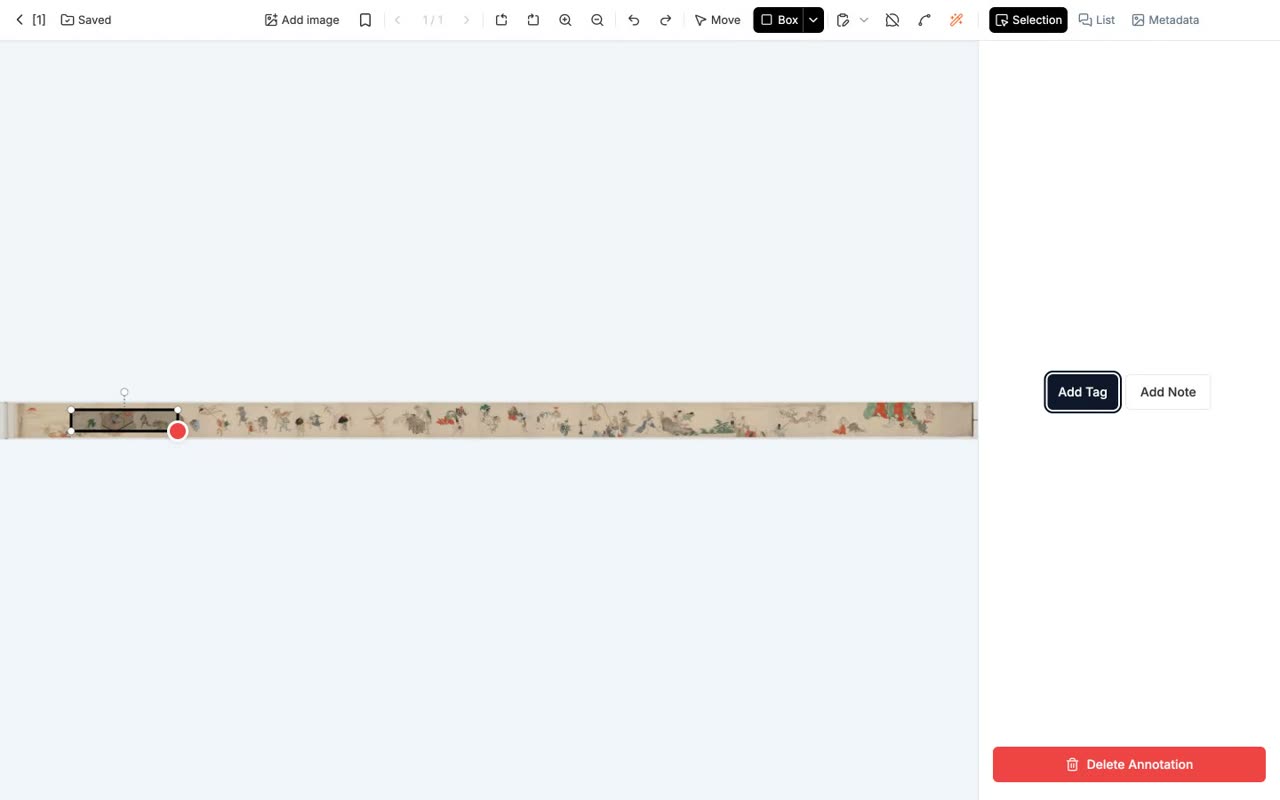

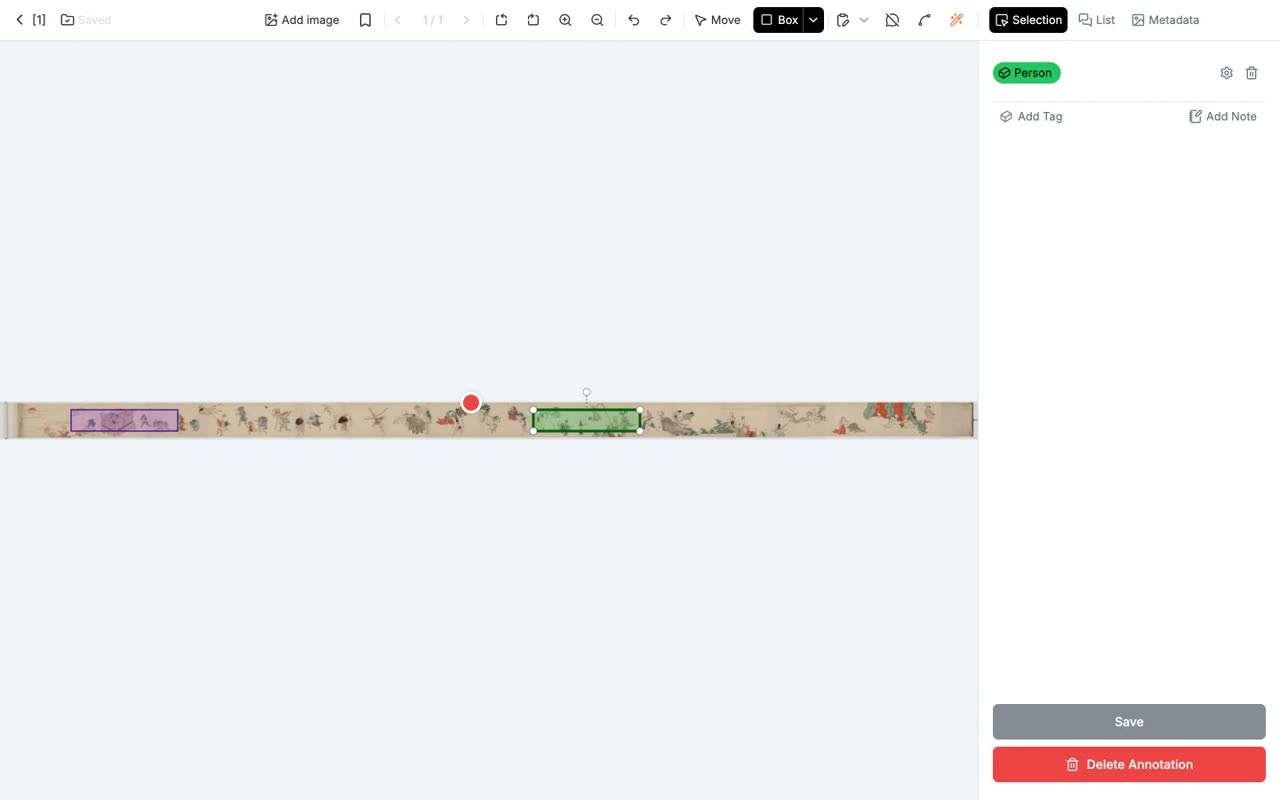

   • 0:24Box: click to start → move → click again to confirm

     For a Box, you click to start, move, then click a second time to confirm.


   • 0:31Assign the Yokai tag from the right-hand panel

     Then assign the Yokai tag from the right-hand panel.

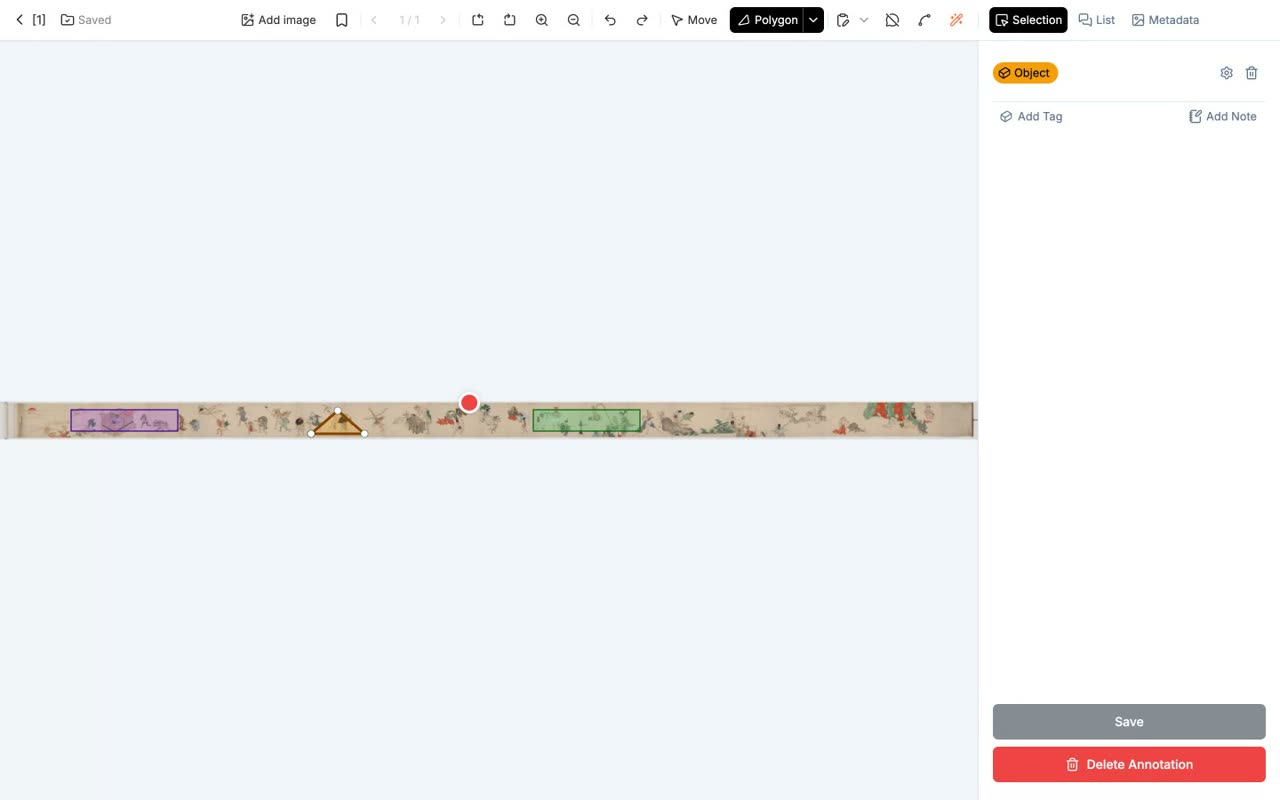

   • 0:47Polygon: place points and close the loop (for irregular silhouettes)

     A Polygon is drawn by placing points and closing the loop, which suits irregular silhouettes.

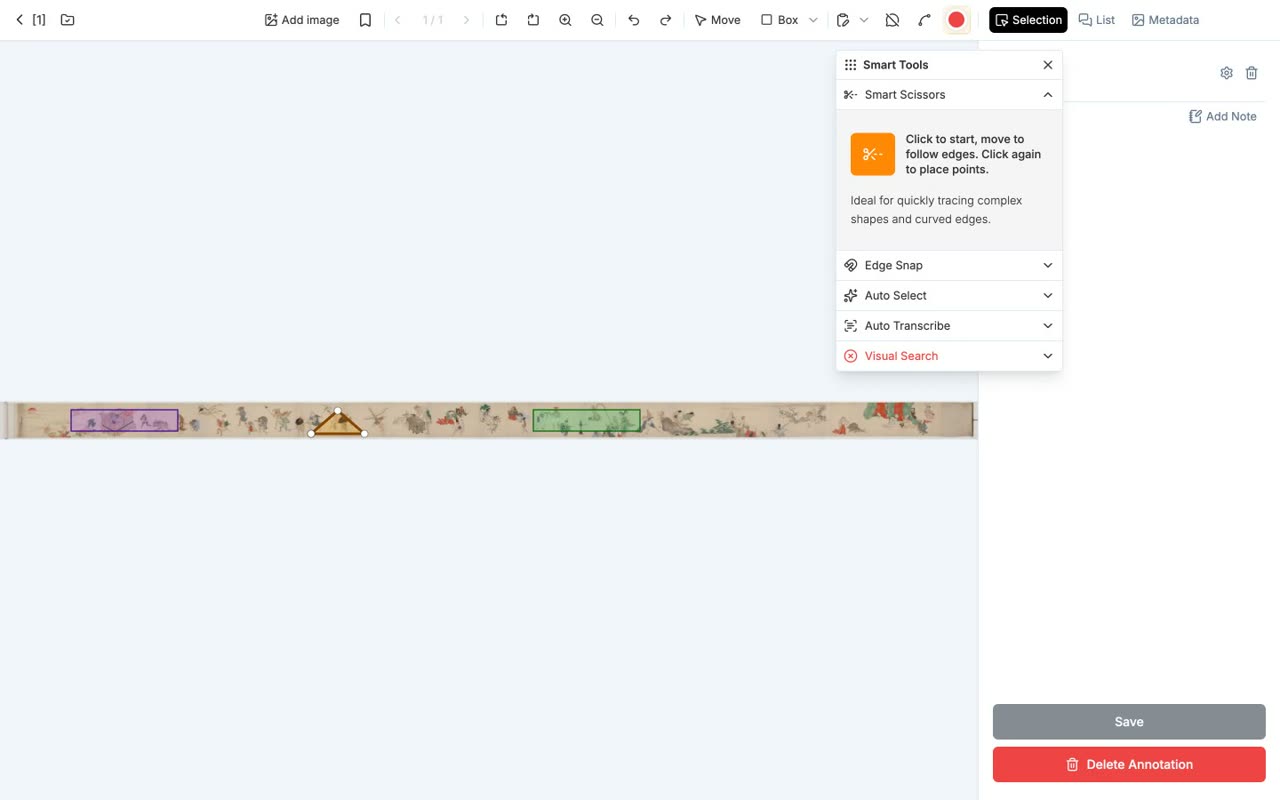

   • 0:59The magic-wand icon holds four "smart tools"

     The magic-wand icon holds four smart tools.


   • 1:01Smart Scissors / Edge Snap / Auto Select / Auto Transcribe (the latter two use AI and need an API key)

     Smart Scissors, Edge Snap, Auto Select, and Auto Transcribe. The last two use AI integration and need an API key.


5. 5

   Drawing relationships

   Creating relationships between annotations with the Wires tool

   Narration script

   • 0:37You can draw "relationships" between annotations

     You can draw relationships between annotations.


   • 0:40The lucide-spline icon is the Wires tool

     The spline icon is the Wires tool.


   • 0:45Select an annotation, a diamond handle appears, drag it to another annotation to create a relationship

     When you select an annotation, a diamond handle appears, and you drag it to another annotation to create a relationship.


   • 0:49Predefine relationship types to pick them from a list

     If you predefine relationship types, you can pick them from a list.


6. 6

   Surveying in the Knowledge Graph

   Two graph modes, display options, and search with XLSX export

   Narration script

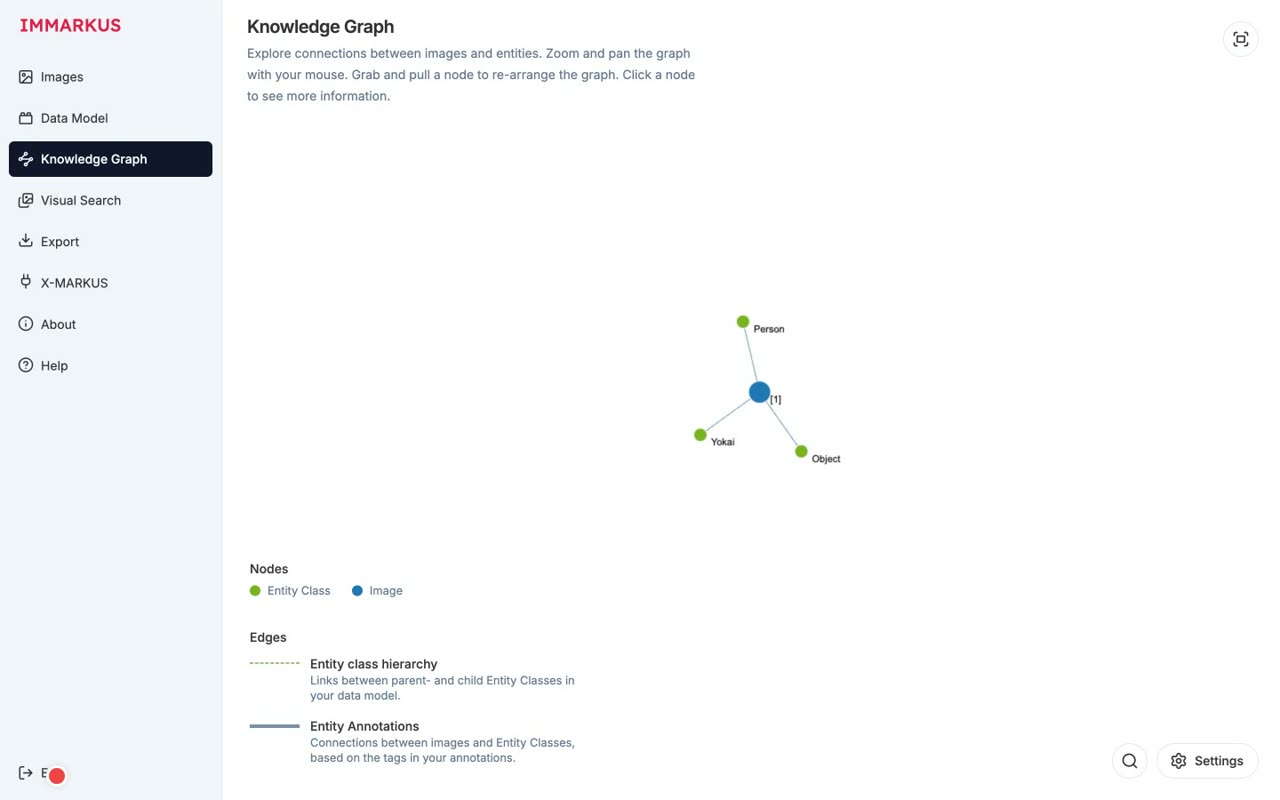

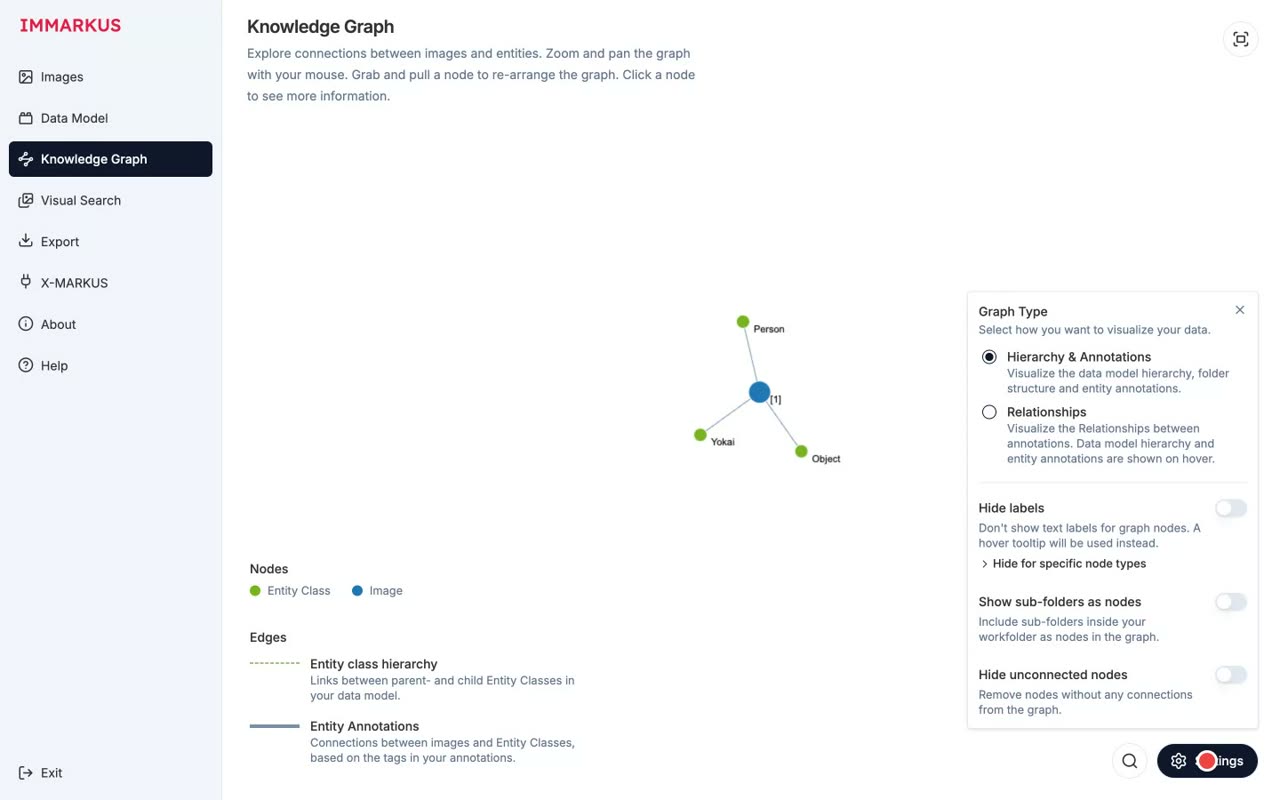

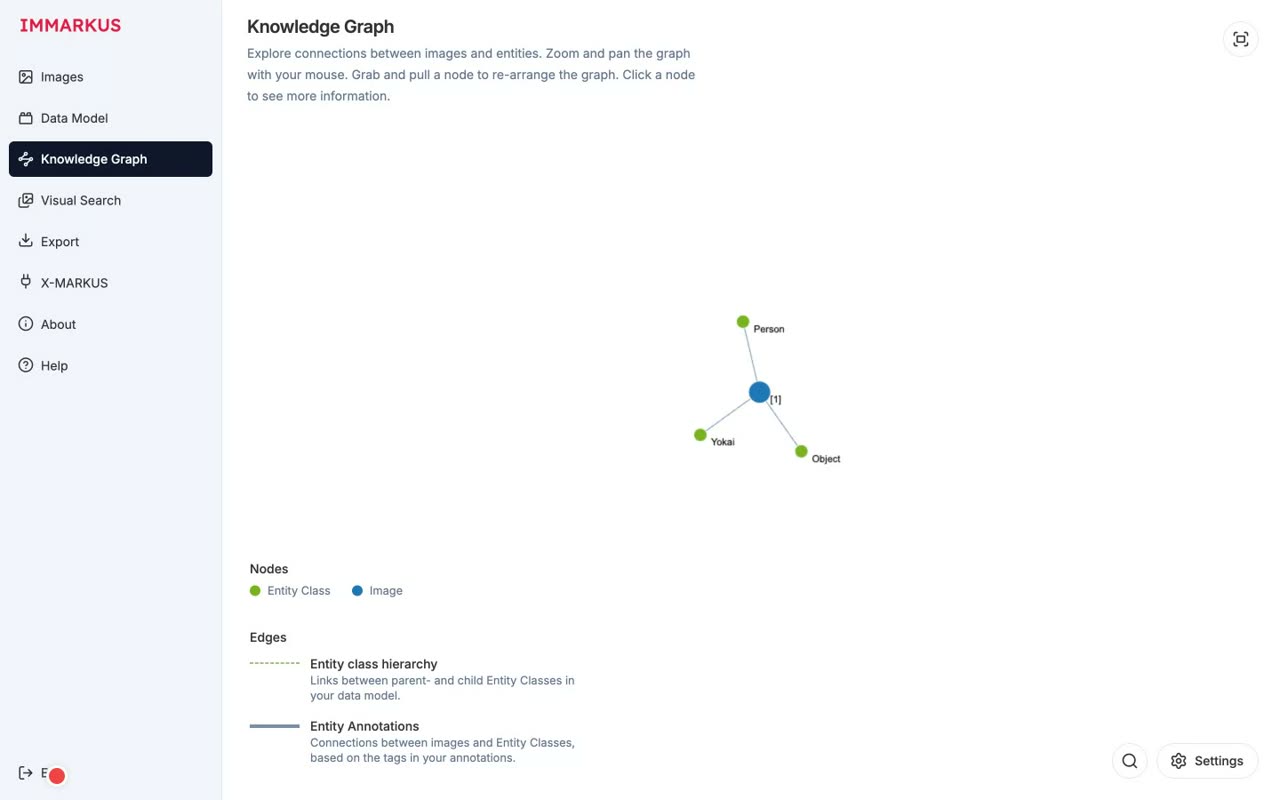

   • 0:57Survey everything in the Knowledge Graph

     Survey everything in the Knowledge Graph.


   • 0:59Edges run from image [1] to Yokai / Person / Object blue node = image, green node = entity class

     Edges run from image one out to Yokai, Person, and Object. Blue nodes are images, and green nodes are entity classes.

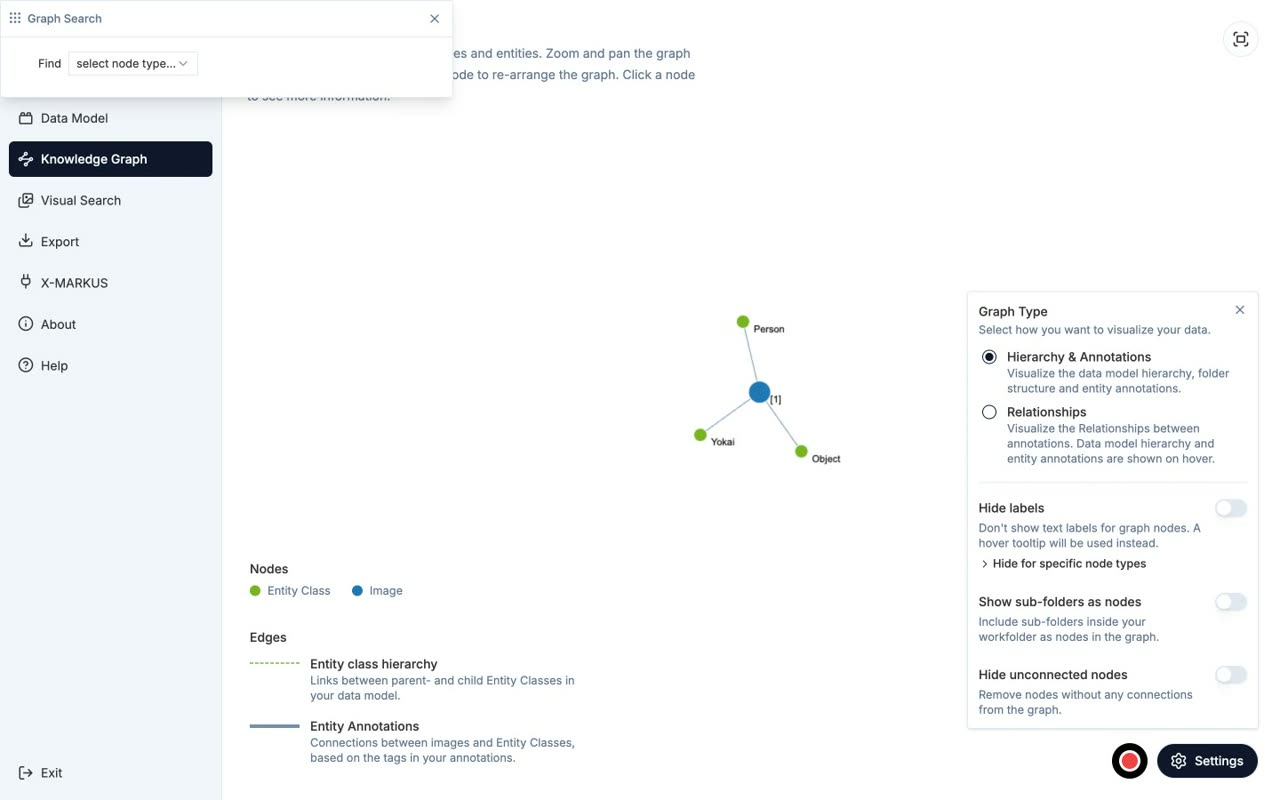

   • 1:05Two Graph Types Hierarchy & Annotations / Relationships

     There are two Graph Types: Hierarchy and Annotations, and Relationships.


   • 1:08Three display options Hide labels / Show sub-folders / Hide unconnected nodes

     There are three display options: Hide labels, Show sub-folders, and Hide unconnected nodes.


   • 1:13Combine AND/OR conditions in the search panel results export to XLSX

     You can combine AND and OR conditions in the search panel, and export the results to a spreadsheet.


7. 7

   Exporting

   Exporting W3C Web Annotation JSON-LD and an XLSX with image snippets

   Narration script

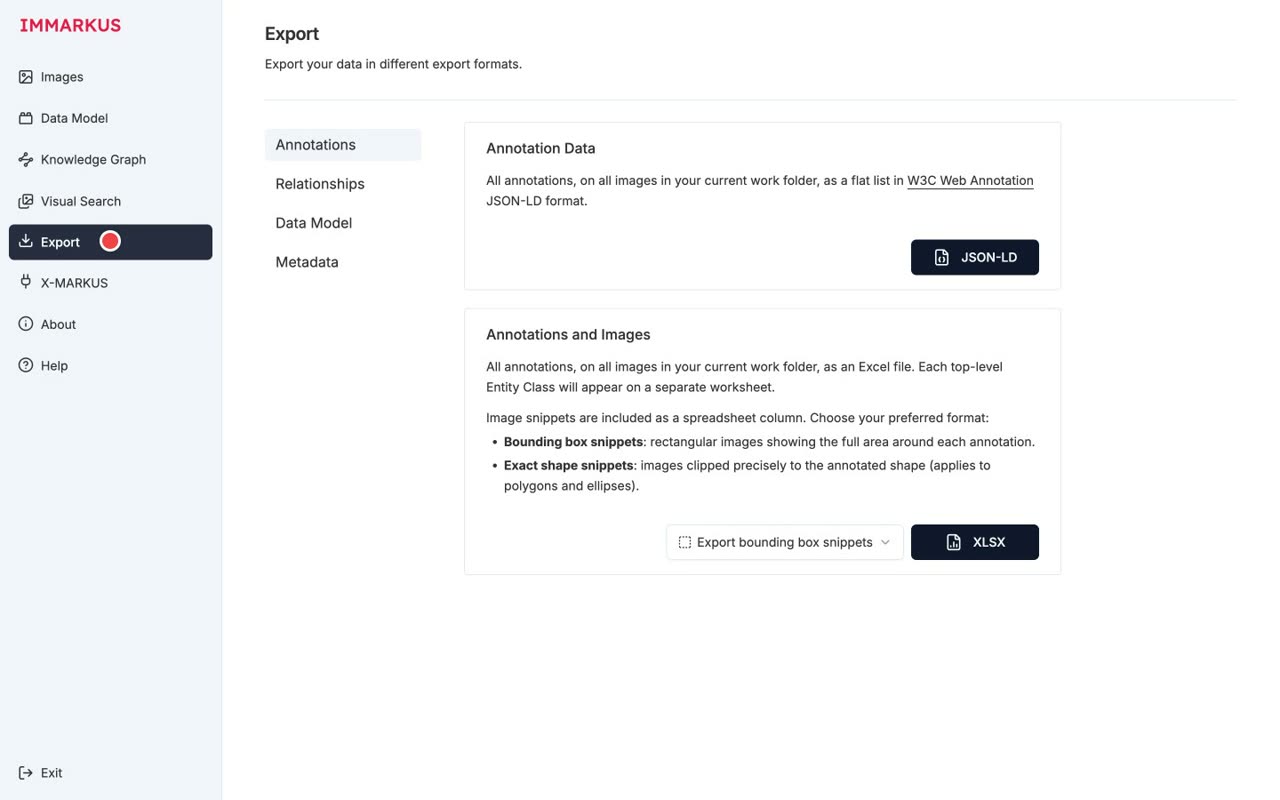

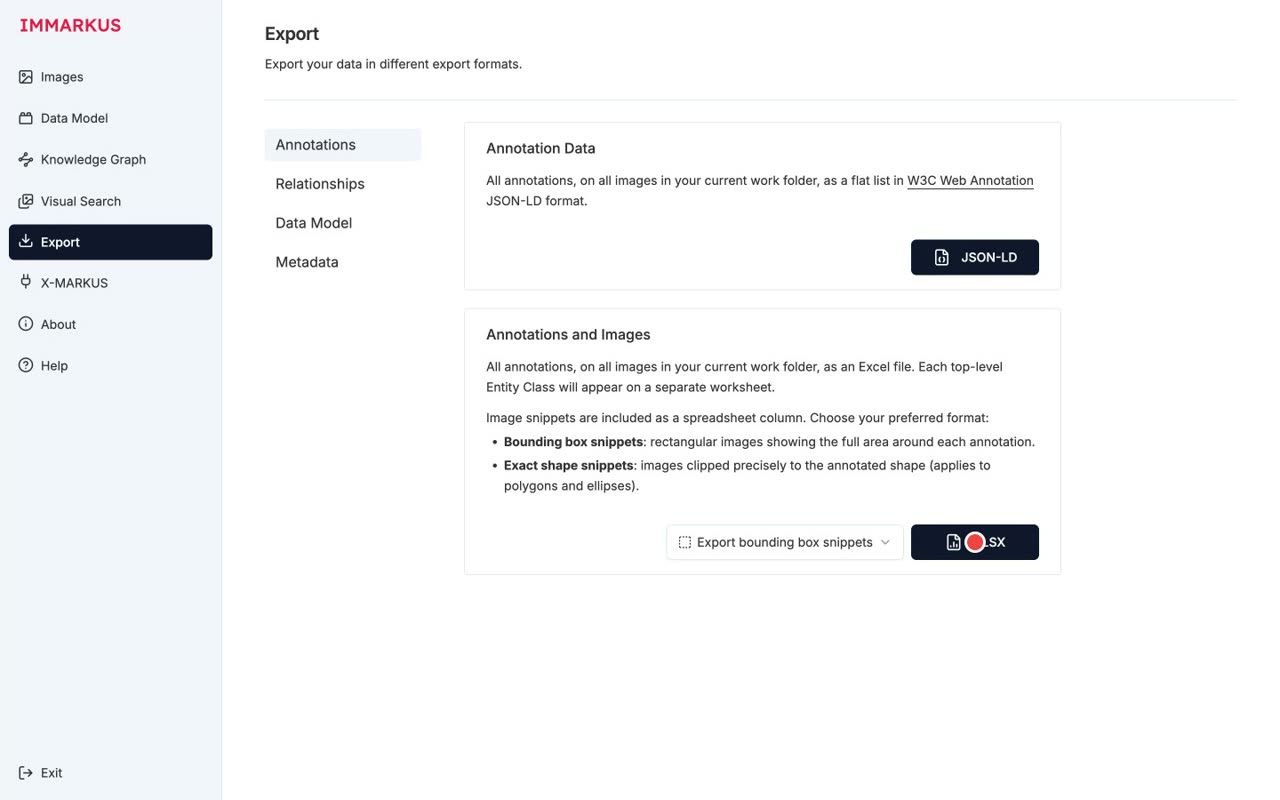

   • 0:42Take your work out — the Export screen

     Now let's take your work out, on the Export screen.


   • 0:46Four sub-tabs Annotations / Relationships / Data Model / Metadata

     There are four sub-tabs: Annotations, Relationships, Data Model, and Metadata.


   • 0:51Annotation Data is W3C Web Annotation JSON-LD interoperable with other IIIF viewers

     Annotation Data is exported as W3C Web Annotation JSON-LD, which is interoperable with other IIIF viewers.


   • 0:57JSON-LD download succeeded ✓

     The JSON-LD download succeeded.


   • 1:00XLSX includes image snippets of each region choose Bounding box or Exact shape

     The spreadsheet includes image snippets of each annotated region, and you can choose Bounding box or Exact shape.


   • 1:07XLSX download succeeded ✓

     The spreadsheet download succeeded.


   • 1:10Even co-authors without IMMARKUS can review with images in Excel

     Even co-authors who don't have IMMARKUS can review the work with images, right in Excel.


8. 8

   Wrap-up — the MARKUS family

   Where it sits in the MARKUS family (images via IMMARKUS, text via MARKUS)

   Narration script

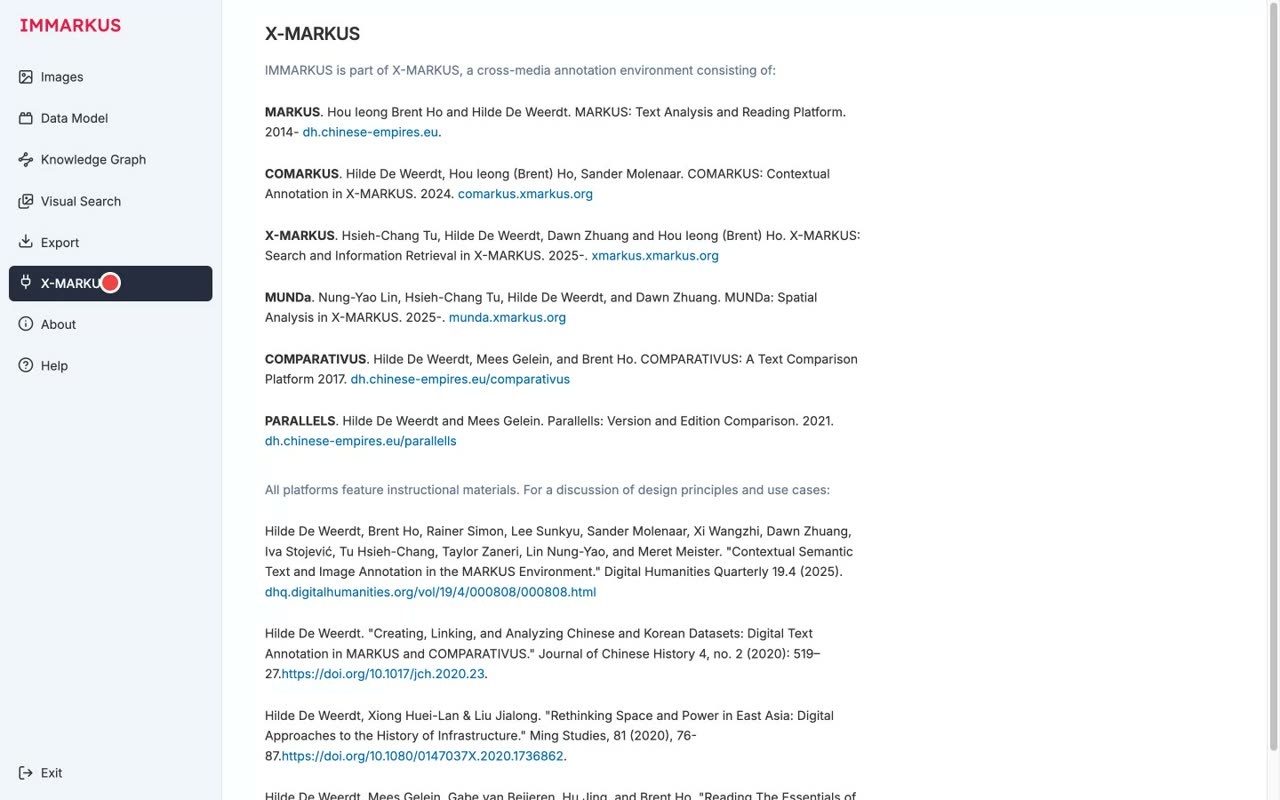

   • 0:10IMMARKUS is part of the MARKUS family

     IMMARKUS is part of the MARKUS family.


   • 0:13MARKUS (text) / COMARKUS (collaboration) COMPARATIVUS (comparison) / PARALLELS (correspondences) MUNDa (multimedia)

     MARKUS for text, COMARKUS for collaborative editing, COMPARATIVUS for comparison, PARALLELS for correspondences, and MUNDa for multimedia.


   • 0:19An ecosystem for working with the same sources from many angles

     It's an ecosystem for working with the same sources from many angles.


   • 0:22IMMARKUS handles images, MARKUS handles text designed to work together

     IMMARKUS handles images and MARKUS handles text, and they're designed to work together.
