Overview
These are notes on how to connect Django with AWS OpenSearch. The following article was helpful.

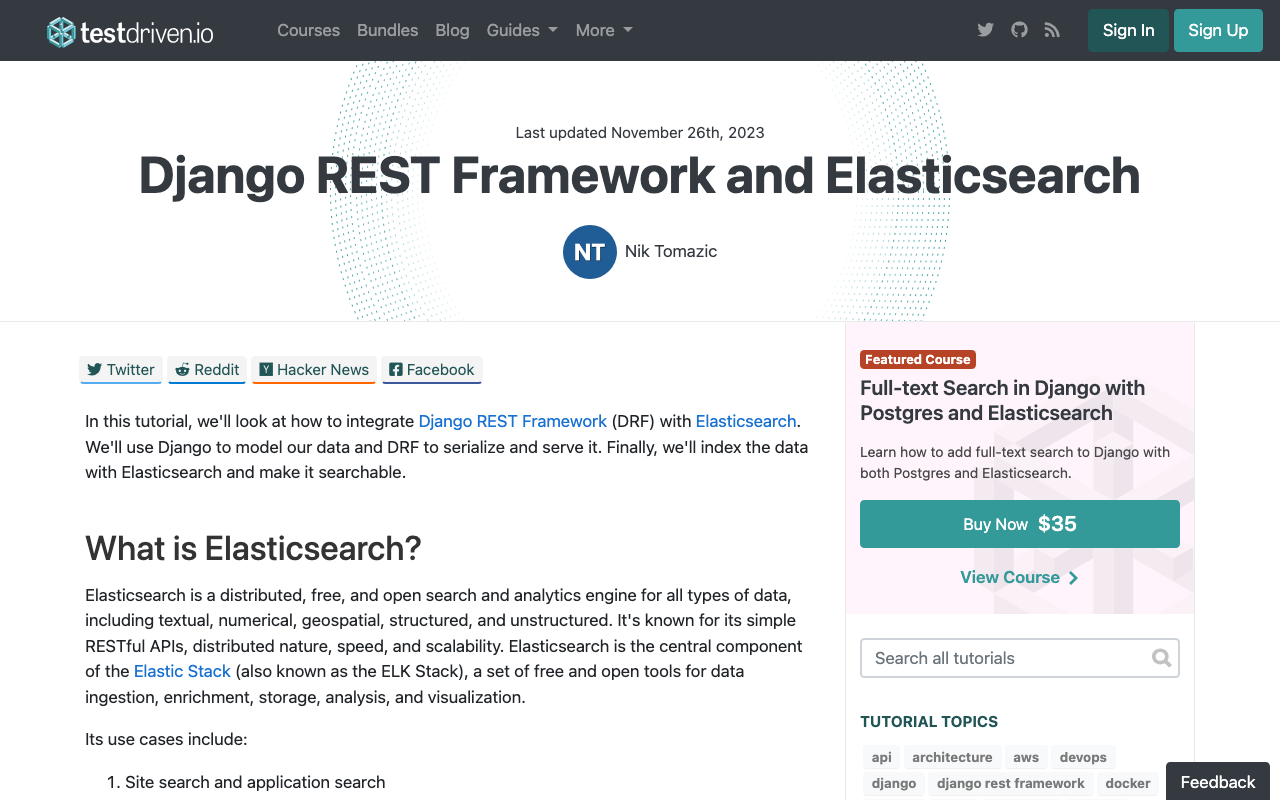

Django REST Framework and Elasticsearch
This tutorial looks at how to integrate Django REST Framework with Elasticsearch.
testdriven.ioHowever, since the above article targets Elasticsearch, changes corresponding to OpenSearch were needed.
Changes
Changes for OpenSearch were needed starting from the Elasticsearch Setup section of the article.
Django REST Framework and Elasticsearch
This tutorial looks at how to integrate Django REST Framework with Elasticsearch.
testdriven.ioSpecifically, the following two libraries were required.
(env)$ pip install opensearch-py
(env)$ pip install django-opensearch-dsl
After that, by replacing django_elasticsearch_dsl with django-opensearch-dsl and elasticsearch_dsl with opensearchpy, I was able to proceed as described in the article.
For example, it looks like this:
# blog/documents.py
from django.contrib.auth.models import User
from django_opensearch_dsl import Document, fields # Changed to opensearch
from django_opensearch_dsl.registries import registry # Changed to opensearch
from blog.models import Category, Article
@registry.register_document
class UserDocument(Document):
class Index:
name = 'users'
settings = {
'number_of_shards': 1,
'number_of_replicas': 0,
}
class Django:
model = User
fields = [
'id',
'first_name',
'last_name',
'username',
]
@registry.register_document
class CategoryDocument(Document):
id = fields.IntegerField()
class Index:
name = 'categories'
settings = {
'number_of_shards': 1,
'number_of_replicas': 0,
}
class Django:
model = Category
fields = [
'name',
'description',
]
@registry.register_document
class ArticleDocument(Document):
author = fields.ObjectField(properties={
'id': fields.IntegerField(),
'first_name': fields.TextField(),
'last_name': fields.TextField(),
'username': fields.TextField(),
})
categories = fields.ObjectField(properties={
'id': fields.IntegerField(),
'name': fields.TextField(),
'description': fields.TextField(),
})
type = fields.TextField(attr='type_to_string')
class Index:
name = 'articles'
settings = {
'number_of_shards': 1,
'number_of_replicas': 0,
}
class Django:
model = Article
fields = [
'title',
'content',
'created_datetime',
'updated_datetime',
]
Populate Elasticsearch
The above article targeting Elasticsearch introduces the following command.
python manage.py search_index --rebuild
On the other hand, for OpenSearch, the following commands were needed.
Creating Indices
python manage.py opensearch index create
The following indices will be created:
- users.
- categories.
- articles.
Continue ? [y]es [n]o : y
Creating index 'users'... OK
Creating index 'categories'... OK
Creating index 'articles'... OK
Registering Documents
python3 manage.py opensearch document index
The following documents will be indexed:
- 5 User.
- 3 Category.
- 5 Article.
Continue ? [y]es [n]o : y
Indexing 5 User: OK
Indexing 3 Category: OK
Indexing 5 Article: OK
5 User successfully indexed, 0 errors:
3 Category successfully indexed, 0 errors:
5 Article successfully indexed, 0 errors:
Rebuilding Indices
python manage.py opensearch index rebuild
Additional: Adding Analyzers and Fields
Try the Field Classes described in the following section.
Document Field Reference - Django Opensearch DSL
django-opensearch-dsl.readthedocs.ioIn the following example, an html_strip analyzer and a Keyword field are set for username.
# blog/documents.py
from django.contrib.auth.models import User
from django_opensearch_dsl import Document, fields
from django_opensearch_dsl.registries import registry
from blog.models import Category, Article
from opensearchpy import analyzer, tokenizer
html_strip = analyzer(
'html_strip',
tokenizer="standard",
filter=["lowercase", "stop", "snowball"],
char_filter=["html_strip"]
)
@registry.register_document
class UserDocument(Document):
username = fields.TextField(
analyzer=html_strip,
fields={'raw': fields.KeywordField()}
)
class Index:
name = 'users'
settings = {
'number_of_shards': 1,
'number_of_replicas': 0,
}
class Django:
model = User
fields = [
'id',
'first_name',
'last_name',
# 'username',
]
As a result of the above, the following mapping was registered in OpenSearch.
{
"users" : {
"mappings" : {
"properties" : {
"first_name" : {
"type" : "text"
},
"id" : {
"type" : "integer"
},
"last_name" : {
"type" : "text"
},
"username" : {
"type" : "text",
"fields" : {
"raw" : {
"type" : "keyword"
}
},
"analyzer" : "html_strip"
}
}
}
}
By using username.raw, sorting and aggregation become possible. Below is an example of views. Adding - appears to sort in descending order.
# search/views.py
import abc
from django.http import HttpResponse
from opensearchpy import Q
from rest_framework.pagination import LimitOffsetPagination
from rest_framework.views import APIView
from blog.documents import ArticleDocument, UserDocument, CategoryDocument
from blog.serializers import ArticleSerializer, UserSerializer, CategorySerializer
class PaginatedOpenSearchAPIView(APIView, LimitOffsetPagination):
serializer_class = None
document_class = None
@abc.abstractmethod
def generate_q_expression(self, query):
"""This method should be overridden
and return a Q() expression."""
def get(self, request, query):
try:
q = self.generate_q_expression(query)
search = self.document_class.search().query(q).sort(
"-username.raw"
)
response = search.execute()
print(
f'*** Found {response.hits.total.value} hit(s) for query: "{query}"')
results = self.paginate_queryset(response, request, view=self)
serializer = self.serializer_class(results, many=True)
return self.get_paginated_response(serializer.data)
except Exception as e:
print(e)
return HttpResponse(e, status=500)
Summary
I hope this serves as a useful reference for connecting Django with AWS OpenSearch.
